Overview

The objective is to repeat the Case1 simulation but with a permeability (k) of 1.0E-16m2.  This is achieved simply by copying the Case1 data file to a new name hm_002_Case3.dat and modifying the data:- Change the Permeability keyword value in the Material_data data structure to 1.0E-16.

The example data is provided in HM_002\Case3\Data\hm_002_Case3.dat.





Results

The result files for the project are in directory: HM_002\Case3\Results. The high definition history files are displayed graphically in the excel file HM_002\00_hm_002.xlsx "hm_002_Case3" worksheet.



The evolution of pore pressure and effective vertical and horizontal stresses are shown below.   No overpressure is observed, the pore pressure solution matches hydrostatic.

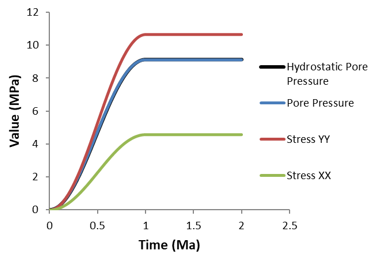

Pore Pressure Evolution at the Base of the Column as a Function of Time

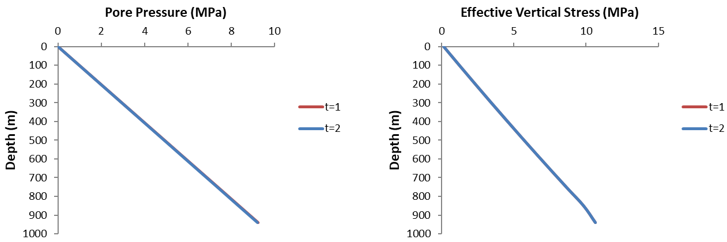

Effective Vertical Stress and Pore Pressure with Depth at t = 1Ma and t = 2Ma
